Collecting patient snapshots together into a group snapshot is useful when predicting a bed count distribution at a point in time. A group snapshot is a subset of patients who were in the ED on a single snapshot date, at a specific prediction time.

In this notebook, I show how patientflow can be used to prepare group snapshots for current patients, by dividing patient snapshots into their groups, and storing the group snapshots as dictionary with: * snapshot_date as the key * snapshot_ids of each patient snapshot as the values

This structure is a convenient way to organise the data when making bed count predictions for different snapshot dates and prediction times, and especially when evaluating those predictions (see next notebook).

About the examples in this notebook

In this notebook I use fake data that resemble visits to the Emergency Department (ED). The dataset covers mutiple snapshot dates and prediction times.

To start with a very simple example, I apply a series of Bernoulli trials to one group snapshot and visualise the bed count distribution reflecting the sum of these trials. In that simple example, every patient has the same probability of the outcome.

I then train a model that predicts a probability of admission for each patient within a group snapshot. This is a more realistic example, as each patient can have a different probability of admission, based on their data. I apply Bernoulli trials and again visualise the predicted distribution for the total number of beds needed for those patients.

I demonstrate functions in patientflow that handle the preparation of group snapshots for making predictions.

# Reload functions every time
%load_ext autoreload
%autoreload 2

The autoreload extension is already loaded. To reload it, use:
  %reload_ext autoreload

Generate fake snapshots

See a previous notebook for more background on this.

from patientflow.generate import create_fake_snapshots

prediction_times = [(6, 0), (9, 30), (12, 0), (15, 30), (22, 0)]
snapshots_df=create_fake_snapshots(prediction_times=prediction_times,
                                   start_date='2023-01-01',
                                   end_date='2023-04-01',
                                   mean_patients_per_day=100)
snapshots_df.head()
snapshot_date prediction_time patient_id visit_number is_admitted age latest_triage_score num_bmp_orders num_cbc_orders num_urinalysis_orders num_troponin_orders num_d-dimer_orders
snapshot_id
0 2023-01-01 (6, 0) 5453 34 0 36 4.0 1 0 0 0 0
1 2023-01-01 (6, 0) 270 1 0 47 5.0 0 1 0 0 0
2 2023-01-01 (9, 30) 5453 34 0 36 4.0 1 0 0 0 0
3 2023-01-01 (9, 30) 5294 27 0 36 3.0 1 1 0 1 1
4 2023-01-01 (9, 30) 5274 79 0 26 4.0 0 0 0 0 0

Note that each record in the snapshots dataframe is indexed by a unique snapshot_id.

Prepare group snapshots

patientflow includes a prepare_group_snapshot_dict() function. As input, it requires a pandas dataframe with a snapshot_date column. If a start date and end date are provided, the function will check for any intervening snapshot dates that are missing, and create an empty group snapshot for this date

Here I create a group snapshot dictionary, for patients in the ED at 09.30.

from patientflow.prepare import prepare_group_snapshot_dict

# select the snapshots to include in the probability distribution,
group_snapshots_dict = prepare_group_snapshot_dict(
    snapshots_df[snapshots_df.prediction_time == (9,30)]
    )

The keys of the dictionary are the snapshot_date. The values are a list of patients in the ED at that time, identified by their unique snapshot_id.

print("First 10 keys in the snapshots dictionary")
print(list(group_snapshots_dict.keys())[0:10])


First 10 keys in the snapshots dictionary
[datetime.date(2023, 1, 1), datetime.date(2023, 1, 2), datetime.date(2023, 1, 3), datetime.date(2023, 1, 4), datetime.date(2023, 1, 5), datetime.date(2023, 1, 6), datetime.date(2023, 1, 7), datetime.date(2023, 1, 8), datetime.date(2023, 1, 9), datetime.date(2023, 1, 10)]

From the first key in the dictionary, we can see the patients belonging to this first snapshot.

first_group_snapshot_key = list(group_snapshots_dict.keys())[0]
first_group_snapshot_values = group_snapshots_dict[first_group_snapshot_key]

print(f"\nThere are {len(first_group_snapshot_values)} patients in the first group snapshot")

print("\nUnique snapshot_ids in the first group snapshot:")
print(first_group_snapshot_values)

# print("\nPatient snapshots belonging to the first group snapshot:")
# snapshots_df.loc[first_group_snapshot_values]

There are 11 patients in the first group snapshot

Unique snapshot_ids in the first group snapshot:
[2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12]

We can use the indices to identify the full patient snapshots.

snapshots_df.loc[first_group_snapshot_values]
snapshot_date prediction_time patient_id visit_number is_admitted age latest_triage_score num_bmp_orders num_cbc_orders num_urinalysis_orders num_troponin_orders num_d-dimer_orders
snapshot_id
2 2023-01-01 (9, 30) 5453 34 0 36 4.0 1 0 0 0 0
3 2023-01-01 (9, 30) 5294 27 0 36 3.0 1 1 0 1 1
4 2023-01-01 (9, 30) 5274 79 0 26 4.0 0 0 0 0 0
5 2023-01-01 (9, 30) 6917 18 1 45 3.0 1 0 0 0 0
6 2023-01-01 (9, 30) 4234 43 0 98 4.0 1 0 1 0 0
7 2023-01-01 (9, 30) 7613 69 0 46 4.0 1 0 0 0 0
8 2023-01-01 (9, 30) 4665 83 1 45 3.0 1 1 0 1 1
9 2023-01-01 (9, 30) 6012 32 0 22 4.0 0 0 1 0 0
10 2023-01-01 (9, 30) 6846 6 0 40 4.0 0 0 0 0 0
11 2023-01-01 (9, 30) 1306 66 0 38 3.0 1 1 0 1 0
12 2023-01-01 (9, 30) 2092 71 0 100 2.0 1 1 0 0 1

More useful is to return not just the indices, but also the data for each visit in the group snapshot. This can be done with the prepare_patient_snapshots, which makes the data ready for processing in groups. This will:

  • filter visits to include only those at the requested prediction time
  • randomly select one snapshot per visit, if requested. If single_snapshot_per_visit is set to True, a visit_col argument must be used, giving the name of the column containing visit identifiers
  • return a tuple of (X, y) matrices, ready for inference. The column containing the outcome (ie the label) is specified in the label_col argument.
from patientflow.prepare import prepare_patient_snapshots

first_snapshot_X, first_snapshot_y = prepare_patient_snapshots(
    df=snapshots_df.loc[first_group_snapshot_values],
    prediction_time=(9,30),
    single_snapshot_per_visit=False,
    label_col="is_admitted"
)
first_snapshot_X
snapshot_date prediction_time patient_id visit_number age latest_triage_score num_bmp_orders num_cbc_orders num_urinalysis_orders num_troponin_orders num_d-dimer_orders
snapshot_id
2 2023-01-01 (9, 30) 5453 34 36 4.0 1 0 0 0 0
3 2023-01-01 (9, 30) 5294 27 36 3.0 1 1 0 1 1
4 2023-01-01 (9, 30) 5274 79 26 4.0 0 0 0 0 0
5 2023-01-01 (9, 30) 6917 18 45 3.0 1 0 0 0 0
6 2023-01-01 (9, 30) 4234 43 98 4.0 1 0 1 0 0
7 2023-01-01 (9, 30) 7613 69 46 4.0 1 0 0 0 0
8 2023-01-01 (9, 30) 4665 83 45 3.0 1 1 0 1 1
9 2023-01-01 (9, 30) 6012 32 22 4.0 0 0 1 0 0
10 2023-01-01 (9, 30) 6846 6 40 4.0 0 0 0 0 0
11 2023-01-01 (9, 30) 1306 66 38 3.0 1 1 0 1 0
12 2023-01-01 (9, 30) 2092 71 100 2.0 1 1 0 0 1

Simple example of making a prediction for a group snapshot

Let's make some predictions for this group. We'll give each of them a probability of being admitted of 0.2. This is equivalent to computing the probable outcome of 12 coin flips, with probability of heads of 0.2.

from scipy import stats
prob_dist_data = stats.binom.pmf(range(13), 12, 0.2)
prob_dist_data


array([6.87194767e-02, 2.06158430e-01, 2.83467842e-01, 2.36223201e-01,
       1.32875551e-01, 5.31502203e-02, 1.55021476e-02, 3.32188877e-03,
       5.19045120e-04, 5.76716800e-05, 4.32537600e-06, 1.96608000e-07,
       4.09600000e-09])

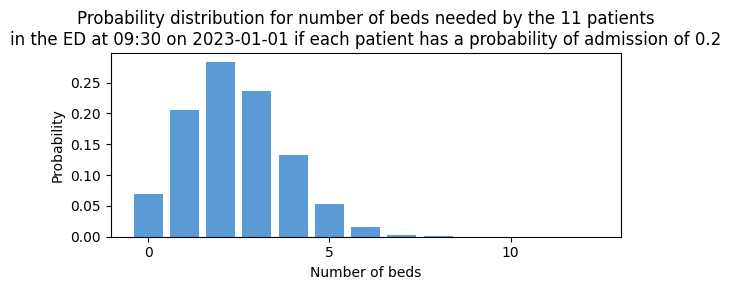

We can plot the predicted distribution using the plot_prob_dist function from patientflow.viz

prob_admission_first_group_snapshot = 0.2*len(first_group_snapshot_values)

from patientflow.viz.probability_distribution import plot_prob_dist
from patientflow.viz.utils import format_prediction_time
title = (
    f'Probability distribution for number of beds needed by the '
    f'{len(first_group_snapshot_values)} patients\n'
    f'in the ED at {format_prediction_time((9,30))} '
    f'on {first_group_snapshot_key} if each patient has a probability of admission of 0.2'
)
plot_prob_dist(prob_dist_data, title,
    include_titles=True)

png

Example of making a prediction for a group snapshot with varying probabilities for each patient

In the cell below, I'm using create_temporal_splits() to create a training, validation and test set and train_classifier() to prepare a XGBoost classifier. This classifier will be used to generate a predicted probability of admission for each patient. See the 2b_Predict_using_patient_snapshots notebook for more on the functions shown here.

from datetime import date
from patientflow.prepare import create_temporal_splits
from patientflow.train.classifiers import train_classifier

# set the temporal split
start_training_set = date(2023, 1, 1)
start_validation_set = date(2023, 2, 15) # 6 week training set
start_test_set = date(2023, 3, 1) # 2 week validation set
end_test_set = date(2023, 4, 1) # 1 month test set

# create the temporal splits
train_visits, valid_visits, test_visits = create_temporal_splits(
    snapshots_df,
    start_training_set,
    start_validation_set,
    start_test_set,
    end_test_set,
    col_name="snapshot_date", # states which column contains the date, for use when making the splits
    patient_id="patient_id", # states which column contains the patient id, for use when making the splits
    visit_col="visit_number", # states which column contains the visit number to use when making the splits

)
# exclude columns that are not needed for training
exclude_from_training_data=['visit_number', 'snapshot_date', 'prediction_time']

# train the patient-level model
model = train_classifier(
    train_visits,
    valid_visits,
    test_visits=test_visits,
    grid={"n_estimators": [30]},
    prediction_time=(9, 30),
    exclude_from_training_data=exclude_from_training_data,
    ordinal_mappings={'latest_triage_score': [1, 2, 3, 4, 5]},
    visit_col='visit_number',
    use_balanced_training=True,
    calibrate_probabilities=True
)


Patient Set Overlaps (before random assignment):
Train-Valid: 0 of 5318
Valid-Test: 102 of 3690
Train-Test: 307 of 6129
All Sets: 0 of 7364 total patients
Split sizes: [6406, 2122, 4304]

Now, using the trained model, I will predict a bed count distribution for one snapshot using get_prob_dist_for_prediction_moment(). That function expects the following:

  • X_test - the dataset of patient snapshots to be passed to the model
  • y_test - the vector containing the outcome for each patient snapshot (if these are known)
  • model - a trained model
  • inference_time (defaults to True) - if set to False, the function will calculate the observed outcome for the group snapshot; set this to True if the outcomes for each patient as as yet unknown
  • weights - an optional parameter to weight the probabilities returned by the model. This will be demonstrated in later examples

The function returns a dictionary with two keys:

  • agg_predicted contains a predicted probability distribution - in this example, for number of admissions among the patients in the snapshot
  • agg_observed counts the number of times the outcome was observed - in this case number of admissions observed
from patientflow.aggregate import get_prob_dist_for_prediction_moment

bed_count_prob_dist = get_prob_dist_for_prediction_moment(
    first_snapshot_X,
    model,
    inference_time=False,
    y_test=first_snapshot_y
)

bed_count_prob_dist.keys()


dict_keys(['agg_predicted', 'agg_observed'])

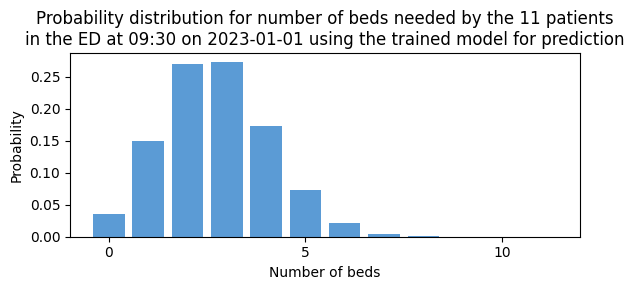

Using the agg_predicted key, we can plot the probability distribution:

from patientflow.viz.probability_distribution import plot_prob_dist
from patientflow.viz.utils import format_prediction_time
title = (
    f'Probability distribution for number of beds needed by the '
    f'{len(first_snapshot_X)} patients\n'
    f'in the ED at {format_prediction_time((9,30))} '
    f'on {first_group_snapshot_key} using the trained model for prediction'
)
plot_prob_dist(bed_count_prob_dist['agg_predicted'], title,
    include_titles=True)

png

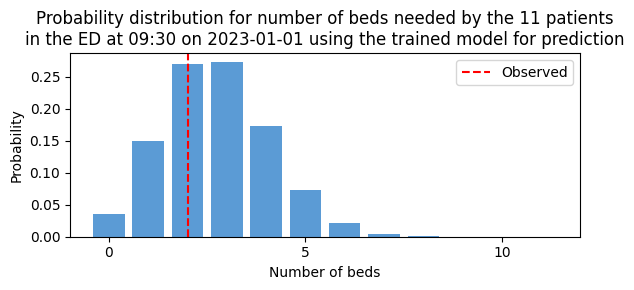

The plot_prob_dist function will return the figure if requested. For example below, I have added the observed number of admissions for this group snapshot to the figure.

fig = plot_prob_dist(bed_count_prob_dist['agg_predicted'], title,
    include_titles=True, return_figure=True)
ax = fig.gca()
ax.axvline(x=bed_count_prob_dist['agg_observed'], color='red', linestyle='--', label='Observed')
ax.legend();

png

Make predictions for group snapshots

Now we'll make predictions for the whole test set.

X_test, y_test = prepare_patient_snapshots(
    df=snapshots_df,
    prediction_time=(9,30),
    single_snapshot_per_visit=False,
    exclude_columns=exclude_from_training_data,
    visit_col='visit_number'
)

The get_prob_dist function is set up to receive as input a dictionary of group snapshots, created using the prepare_group_snapshot_dict function demonstrated above. It calls get_prob_dist_for_prediction_moment() for each entry in the dictionary. The arguments to get_prob_dist are:

  • snapshots_dict - a snapshots dictionary
  • X_test - the dataset of patient snapshots to be passed to the model
  • y_test - the vector containing the outcome for each patient snapshot
  • model - a trained model
  • weights - an optional parameter to weight the probabilities returned by the model. This will be demonstrated in later examples

When calling get_prob_dist_for_prediction_moment the function will set the inference_time parameter to false.

from patientflow.aggregate import get_prob_dist

group_snapshots_dict = prepare_group_snapshot_dict(
    test_visits[test_visits.prediction_time == (9,30)]
    )
# get probability distribution for this time of day
prob_dists_for_group_snapshots = get_prob_dist(
        group_snapshots_dict, X_test, y_test, model
    )

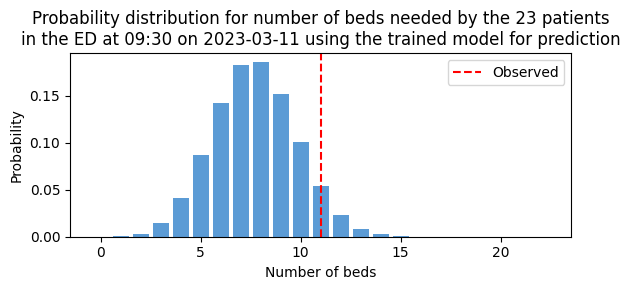

In the next cell I pick a date from the test set at random, and visualise the predicted distribution.

import random
random_snapshot_date = random.choice(list(prob_dists_for_group_snapshots.keys()))
title = (
    f'Probability distribution for number of beds needed by the '
    f'{len(prob_dists_for_group_snapshots[random_snapshot_date]["agg_predicted"])} patients\n'
    f'in the ED at {format_prediction_time((9,30))} '
    f'on {random_snapshot_date} using the trained model for prediction'
)
fig = plot_prob_dist(prob_dists_for_group_snapshots[random_snapshot_date]['agg_predicted'], title,
    include_titles=True, return_figure=True)
ax = fig.gca()
ax.axvline(x=prob_dists_for_group_snapshots[random_snapshot_date]['agg_observed'], color='red', linestyle='--', label='Observed')
ax.legend();

png

The returned object is now ready for evaluation, which I cover in the next notebook.

Summary

In this notebook I have demonstrated the functions in patientflow that handle the preparation of group snapshots. These include:

  • prepare_patient_snapshots, which makes the data ready for processing in groups.
  • get_prob_dist_for_prediction_moment, which computes predicted and observed probabilities for a specific snapshot date and prediction time.
  • get_prob_dist which computes probability distributions for multiple snapshot dates.

I have also shown the use of plot_prob_dist to visualise the predicted distribution for one group snapshot.
