3d. Predict bed count distributions for subgroups

It is often the case that pressures build up on certain areas of the hospital, or for subgroups of patients, due to random fluctuations. Sometimes one demographic group seems to be showing up more than usual, such as older males, putting pressure on male geriatric beds.

In this notebook I show how patientflow can be used to create predictions for subgroups of patients. These groups might be * specific clinical areas of the hospital (eg medical or paediatric beds) * subgroups defined by a demographic characteristic (eg sex)

Predicting which subgroup a patient will belong to

My focus initially is on subgroups defined by the clinical area patients are admitted to after ED; I refer to the clinical areas as specialties.

I demonstrate the use of a SequenceToOutcomePredictor class, that can be used to predict each patient's probability of admission to a specialty if they are admitted. I load real patient data and show how the SequenceToOutcomePredictor is trained using sequences of consult requests made while patients are in the ED.

The SequenceToOutcomePredictor approach could be used with other sequence data, such as sequences of locations or procedures, if you deem these likely to be associated with a patient being admitted to a clinical area. The key assumption of the sequence design is that the order is meaningful; for example, a surgical consult following a medical consult, or vice versa, is meaningful for the patient's likelihood of being admitted under surgery.

If you don't have sequences for predicting sub-groups, you might have more simple data, such as a single reason code for each visit, entered on triage (eg heart problem, broken bone), that suggests which specialty a patient will end up in. I demonstrate a ValueToOutcomePredictor which can be used with such data.

Combining specialty prediction with admission prediction

I then combine the specialty prediction model with the admission probability model (shown in previous notebooks) to calculate the joint probability that a patient will both be admitted and require a specific specialty. Formally, this derives P(admitted AND specialty X) = P(admitted) × P(specialty X | admitted). This joint probability approach means we can generate specialty-specific bed count predictions. I demonstrate the joint probability for one group snapshot.

I deliberately excluded consult types from the admissions model to ensure the two models use independent signals, avoiding potential overfitting when combining their predictions.

Stratifying by observed characteristics

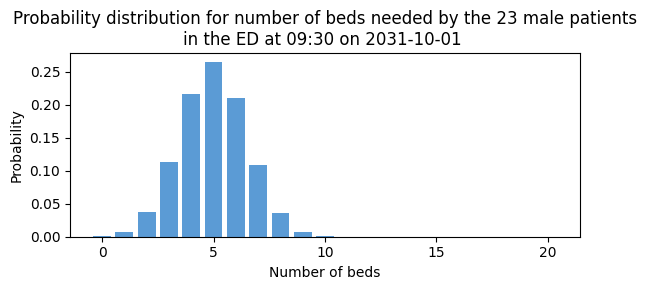

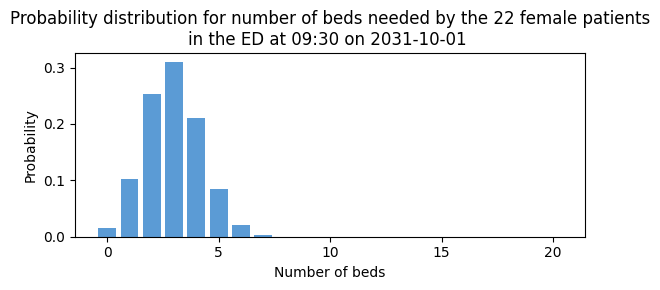

Finally, I show a different type of subgroup analysis by stratifying patients by sex. Since sex is directly observed rather than predicted, I create separate bed count distributions for male and female patients.

Load real patient data

Following the approach taken in the previous notebook, I'll first load some real patient data.

# Reload functions every time
%load_ext autoreload
%autoreload 2

import pandas as pd
from patientflow.load import set_file_paths, load_data, load_config_file

# set project root
from patientflow.load import set_project_root
project_root = set_project_root()

# set file paths
data_file_path, media_file_path, model_file_path, config_path = set_file_paths(
        project_root,
        data_folder_name='data-public', # change this to data-synthetic if you don't have the public dataset
        verbose=False)

# load the data
ed_visits = load_data(data_file_path,
                    file_name='ed_visits.csv',
                    index_column = 'snapshot_id',
                    sort_columns = ["visit_number", "snapshot_date", "prediction_time"],
                    eval_columns = ["prediction_time", "consultation_sequence", "final_sequence"])
ed_visits.snapshot_date = pd.to_datetime(ed_visits.snapshot_date).dt.date

# load the config file to set the dates for the training, validation and test sets
params = load_config_file(config_path)
start_training_set, start_validation_set, start_test_set, end_test_set = params["start_training_set"], params["start_validation_set"], params["start_test_set"], params["end_test_set"]

# apply the temporal splits
from datetime import date
from patientflow.prepare import create_temporal_splits

# create the temporal splits
train_visits, valid_visits, test_visits = create_temporal_splits(
    ed_visits,
    start_training_set,
    start_validation_set,
    start_test_set,
    end_test_set,
    col_name="snapshot_date", # states which column contains the date to use when making the splits
    visit_col="visit_number", # states which column contains the visit number to use when making the splits

)

Inferred project root: /Users/zellaking/Repos/patientflow
Split sizes: [62071, 10415, 29134]

Train a model to predict probability of admission to each specialty

Predict specialty of admission using sequences of consults

In this example, the data used as input comprise sequences of consults issued while the patient was in the ED. The consultation_sequence column shows the ordered sequence of consultation requests up to the moment of the snapshot, and the final_sequence shows the ordered sequence at the end of the ED visit. The specialty column records which specialty the patient was admitted to.

ed_visits[(ed_visits.is_admitted) & (ed_visits.prediction_time == (9,30))][['consultation_sequence', 'final_sequence', 'specialty']].head(10)

	consultation_sequence	final_sequence	specialty
snapshot_id
183349	['acute', 'discharge']	['acute', 'discharge']	medical
132235	['paeds']	['paeds']	paediatric
114978	[]	['acute']	medical
199212	[]	[]	paediatric
202378	[]	['surgical']	medical
200273	[]	['acute']	medical
171735	[]	[]	NaN
140899	['haem_onc']	['haem_onc']	haem/onc
122882	['acute']	['acute', 'medical', 'elderly']	medical
159335	[]	['surgical']	surgical

Below I demonstrate training the model. A rooted decision-tree is used to calculate:

• the probability of an ordered sequence of consultations observed at the snapshot (which could be none) resulting in each final sequence at the end of the ED visit
• the probability of each of those final sequences being associated with admission to each specialty (the outcome)

This sequence predictor could be applied to other types of data, such as sequences of ED locations, or sequences of clinical teams visited. Therefore, the SequenceToOutcomePredictor arguments have been given generic names:

• input_var - the interim node in the decision tree, observed at the snapshot
• grouping_var - the terminal node in the decision tree, observed in this example at the end of the ED visit
• outcome_var - the final outcome to be predicted

The apply_special_category_filtering argument provides for the handling of certain categories in a specific way. For example, under 18 patients might always be assumed to be visiting paediatric specialties. I demonstrate this in a later notebook.

from patientflow.predictors.sequence_to_outcome_predictor import SequenceToOutcomePredictor

spec_model = SequenceToOutcomePredictor(
    input_var="consultation_sequence",
    grouping_var="final_sequence",
    outcome_var="specialty",
    apply_special_category_filtering=False,
)

spec_model.fit(train_visits)

SequenceToOutcomePredictor(
    input_var='consultation_sequence',
    grouping_var='final_sequence',
    outcome_var='specialty',
    apply_special_category_filtering=False,
    admit_col='is_admitted'
)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

From the weights that are returned, we can view the probability of being admitted to each specialty for a patient who has no consultation sequence at the time of prediction

print(
    f'Probability of being admitted to each specialty at the end of the visit if no consultation result has been made by the time of the snapshot:\n'
    f'{dict((k, round(v, 3)) for k, v in spec_model.weights[()].items())}'
)

Probability of being admitted to each specialty at the end of the visit if no consultation result has been made by the time of the snapshot:
{'medical': 0.611, 'surgical': 0.248, 'paediatric': 0.061, 'haem/onc': 0.08}

Similar we can view the probability of being admitted to each specialty after a consultation request to acute medicine

print(
    f'\nProbability of being admitted to each specialty if one consultation request to acute medicine has taken place by the time of the snapshot:\n'
    f'{dict((k, round(v, 3)) for k, v in spec_model.weights[("acute",)].items())}'
)

Probability of being admitted to each specialty if one consultation request to acute medicine has taken place by the time of the snapshot:
{'medical': 0.95, 'surgical': 0.017, 'paediatric': 0.002, 'haem/onc': 0.032}

The intermediate mapping of consultation_sequence to final_sequence can be accessed from the trained model like this. The first row shows the probability of a null sequence (ie no consults yet) ending in any of the final_sequence options.

spec_model.input_to_grouping_probs.iloc[:, :10]

final_sequence	()	(acute,)	(acute, acute)	(acute, acute, acute)	(acute, acute, discharge)	(acute, acute, icu)	(acute, acute, medical)	(acute, acute, medical, surgical)	(acute, acute, mental_health)	(acute, acute, palliative)
consultation_sequence
()	0.015452	0.433579	0.014760	0.000231	0.000231	0.000	0.000692	0.000231	0.000461	0.000
(acute,)	0.000000	0.820442	0.007182	0.000000	0.000000	0.000	0.000000	0.000000	0.000000	0.000
(acute, acute)	0.000000	0.000000	0.850000	0.000000	0.025000	0.025	0.075000	0.000000	0.000000	0.025
(acute, acute, medical)	0.000000	0.000000	0.000000	0.000000	0.000000	0.000	1.000000	0.000000	0.000000	0.000
(acute, allied)	0.000000	0.000000	0.000000	0.000000	0.000000	0.000	0.000000	0.000000	0.000000	0.000
...	...	...	...	...	...	...	...	...	...	...
(surgical, paeds)	0.000000	0.000000	0.000000	0.000000	0.000000	0.000	0.000000	0.000000	0.000000	0.000
(surgical, surgical)	0.000000	0.000000	0.000000	0.000000	0.000000	0.000	0.000000	0.000000	0.000000	0.000
(surgical, surgical, acute)	0.000000	0.000000	0.000000	0.000000	0.000000	0.000	0.000000	0.000000	0.000000	0.000
(surgical, surgical, icu)	0.000000	0.000000	0.000000	0.000000	0.000000	0.000	0.000000	0.000000	0.000000	0.000
(surgical, surgical, medical)	0.000000	0.000000	0.000000	0.000000	0.000000	0.000	0.000000	0.000000	0.000000	0.000

123 rows × 10 columns

Using the SequenceToOutcomePredictor

Below I apply the predict function to get each patient's probability of being admitted to the four specialties.

test_visits['consultation_sequence'].head().apply(spec_model.predict)

snapshot_id
192732    {'medical': 0.1318359375, 'surgical': 0.826171...
209659    {'medical': 0.09243697478991597, 'surgical': 0...
207377    {'medical': 0.8333333333333333, 'surgical': 0....
216864    {'medical': 0.6107109665427509, 'surgical': 0....
207071    {'medical': 0.6107109665427509, 'surgical': 0....
Name: consultation_sequence, dtype: object

A dictionary is returned for each patient, with probabilites summed to 1. To get each patient's probability of admission to one specialty indexed in the dictionary, we can select that key as shown below:

print("Probability of admission to medical specialty for the first five patients:")
test_visits['consultation_sequence'].head().apply(spec_model.predict).apply(lambda x: x['medical']).values

Probability of admission to medical specialty for the first five patients:





array([0.13183594, 0.09243697, 0.83333333, 0.61071097, 0.61071097])

Predicting specialty of admission using a simpler input

If your data for predicting specialty has a simpler structure, say in the form of a string variable containing reasons for presentation at ED, patientflow offers a simpler model.

To illustrate this, I create a temporary column by truncating the sequence data to the first item in the list only.

ed_visits['temp_consultation_sequence'] = ed_visits['consultation_sequence'].apply(
    lambda x: x[0].strip("'") if isinstance(x, (list, tuple)) and len(x) > 0 else None
)

ed_visits['temp_final_sequence'] = ed_visits['final_sequence'].apply(
    lambda x: x[0].strip("'") if isinstance(x, (list, tuple)) and len(x) > 0 else None
)

ed_visits[(ed_visits.is_admitted) & (ed_visits.prediction_time == (9,30))][['temp_consultation_sequence', 'temp_final_sequence', 'specialty']].head(10)

	temp_consultation_sequence	temp_final_sequence	specialty
snapshot_id
183349	acute	acute	medical
132235	paeds	paeds	paediatric
114978	None	acute	medical
199212	None	None	paediatric
202378	None	surgical	medical
200273	None	acute	medical
171735	None	None	NaN
140899	haem_onc	haem_onc	haem/onc
122882	acute	acute	medical
159335	None	surgical	surgical

# create the temporal splits
train_visits, valid_visits, test_visits = create_temporal_splits(
    ed_visits,
    start_training_set,
    start_validation_set,
    start_test_set,
    end_test_set,
    col_name="snapshot_date", # states which column contains the date to use when making the splits
    visit_col="visit_number", # states which column contains the visit number to use when making the splits

)

from patientflow.predictors.value_to_outcome_predictor import ValueToOutcomePredictor

spec_model_simple = ValueToOutcomePredictor(
    input_var="temp_consultation_sequence",
    grouping_var="temp_final_sequence",
    outcome_var="specialty",
    apply_special_category_filtering=False,
)

spec_model_simple.fit(train_visits)

Split sizes: [62071, 10415, 29134]

ValueToOutcomePredictor(
    input_var='temp_consultation_sequence',
    grouping_var='temp_final_sequence',
    outcome_var='specialty',
    apply_special_category_filtering=False,
    admit_col='is_admitted'
)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

The weights, which map the input variable to specialty, and the intermediate mappings from input to grouping variables can be viewed in the same way as before. The weights are returned with a key of an empty string rather than a None value for probabilities with a Null value in the input variable.

print(
    f'Probability of being admitted to each specialty at the end of the visit if the value of the input is "medical" at the time of the snapshot:\n'
    f'{dict((k, round(v, 3)) for k, v in spec_model_simple.weights['medical'].items())}'
)

print(
    f'\nProbability of being admitted to each specialty at the end of the visit if no input has been recorded by the time of the snapshot:\n'
    f'{dict((k, round(v, 3)) for k, v in spec_model_simple.weights[''].items())}'
)

Probability of being admitted to each specialty at the end of the visit if the value of the input is "medical" at the time of the snapshot:
{'haem/onc': 0.019, 'medical': 0.91, 'paediatric': 0.01, 'surgical': 0.061}

Probability of being admitted to each specialty at the end of the visit if no input has been recorded by the time of the snapshot:
{'haem/onc': 0.063, 'medical': 0.652, 'paediatric': 0.057, 'surgical': 0.228}

spec_model_simple.input_to_grouping_probs

temp_final_sequence		acute	allied	ambulatory	discharge	elderly	haem_onc	icu	medical	mental_health	neuro	obs_gyn	other	paeds	palliative	surgical	probability_of_input_value
temp_consultation_sequence
	0.015452	0.545664	0.000231	0.00738	0.003690	0.001614	0.044742	0.007611	0.026983	0.007841	0.037131	0.030673	0.000461	0.04405	0.000231	0.226245	0.503717
acute	0.000000	1.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.230367
allied	0.000000	0.000000	1.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000116
ambulatory	0.000000	0.000000	0.000000	1.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.017658
discharge	0.000000	0.000000	0.000000	0.00000	1.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.001394
elderly	0.000000	0.000000	0.000000	0.00000	0.000000	1.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.001046
haem_onc	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	1.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.041473
icu	0.000000	0.027778	0.000000	0.00000	0.000000	0.000000	0.000000	0.972222	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.004182
medical	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.989130	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.010870	0.010688
mental_health	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	1.000000	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.008713
neuro	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	1.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.002556
obs_gyn	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	1.000000	0.000000	0.00000	0.000000	0.000000	0.026022
other	0.000000	0.000000	0.000000	0.00000	0.333333	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.666667	0.00000	0.000000	0.000000	0.000349
paeds	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	1.00000	0.000000	0.000000	0.027765
palliative	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	1.000000	0.000000	0.000116
surgical	0.000000	0.000000	0.000000	0.00000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.00000	0.000000	1.000000	0.123838

Combining specialty prediction with admission prediction

I now have a model I can use to predict a patient's probability of admission to each of the four specialties: medical, surgical, haematology/oncology or paediatric, if admitted. I'll use this these probabilities, with each patient's probability of admission after ED, to generate predicted bed count distributions for each specialty.

For that I'll also need an admission prediction model, which is set up below.

from patientflow.train.classifiers import train_classifier
from patientflow.load import get_model_key

prediction_times = [(6, 0), (9, 30), (12, 0), (15, 30), (22, 0)]
ordinal_mappings = {
    "age_group": [
        "0-17",
        "18-24",
        "25-34",
        "35-44",
        "45-54",
        "55-64",
        "65-74",
        "75-115",
    ],
    "latest_obs_manchester_triage_acuity": [
        "Blue",
        "Green",
        "Yellow",
        "Orange",
        "Red",
    ],
    "latest_obs_objective_pain_score": [
        "Nil",
        "Mild",
        "Moderate",
        "Severe_Very Severe",
    ],
    "latest_obs_level_of_consciousness": [
        "A", #alert
        "C", #confused
        "V", #voice - responds to voice stimulus
        "P", #pain - responds to pain stimulus
        "U" #unconscious - no response to pain or voice stimulus
    ]    }
exclude_from_training_data = [ 'snapshot_date', 'prediction_time','visit_number', 'consultation_sequence', 'specialty', 'final_sequence', ]


admission_model = train_classifier(
    train_visits=train_visits,
    valid_visits=valid_visits,
    test_visits=test_visits,
    grid={"n_estimators": [20, 30, 40]},
    exclude_from_training_data=exclude_from_training_data,
    ordinal_mappings=ordinal_mappings,
    prediction_time=(9,30),
    visit_col="visit_number",
    calibrate_probabilities=True,
    calibration_method="isotonic",
    use_balanced_training=True,
)

Prepare group snapshots

The preparation of group snapshots below is similar to previous notebooks.

from patientflow.prepare import prepare_patient_snapshots, prepare_group_snapshot_dict

prob_dist_dict = {}
first_group_snapshot_key = test_visits.snapshot_date.min()

prediction_snapshots = test_visits[(test_visits.snapshot_date == first_group_snapshot_key) & (test_visits.prediction_time == (9,30))]

# format patient snapshots for input into the admissions model
X_test, y_test = prepare_patient_snapshots(
    df=prediction_snapshots,
    prediction_time=(9,30),
    single_snapshot_per_visit=False,
    exclude_columns=exclude_from_training_data,
    visit_col='visit_number'
)

# prepare group snapshots dict to indicate which patients comprise the group we want to predict for
group_snapshots_dict = prepare_group_snapshot_dict(
    prediction_snapshots
)

Below I demonstrate predictions for each specialty in turn.

from patientflow.viz.probability_distribution import plot_prob_dist
from patientflow.aggregate import get_prob_dist
from patientflow.viz.utils import format_prediction_time

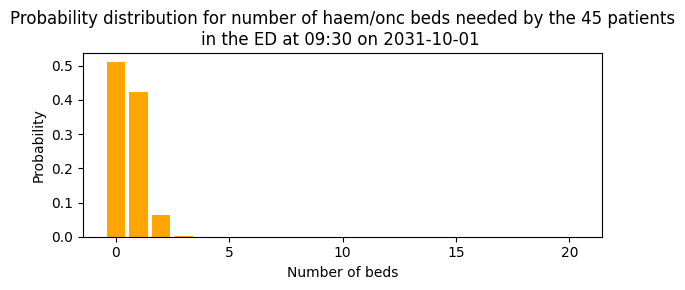

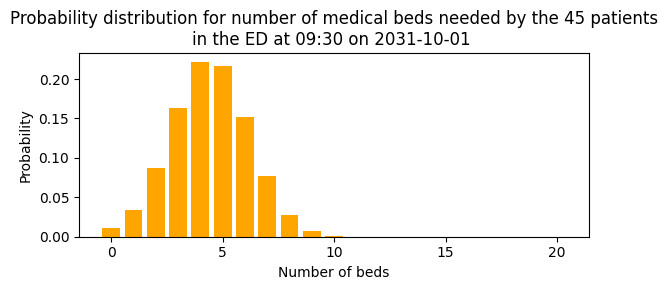

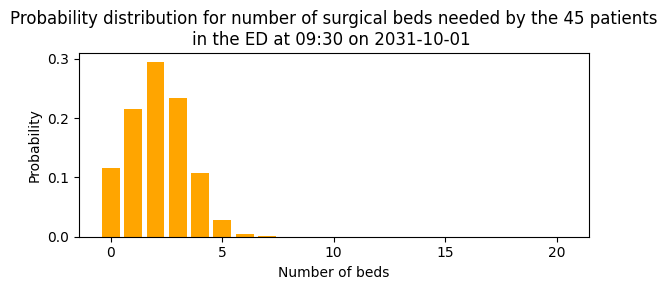

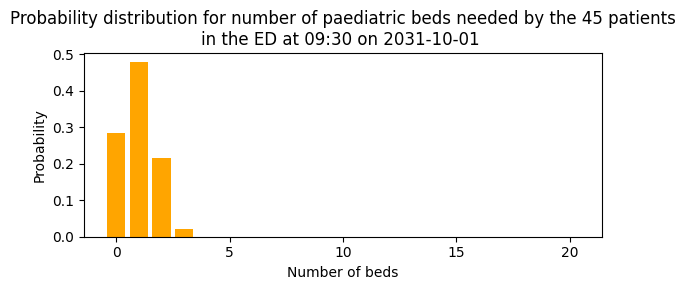

for specialty in ['medical', 'surgical', 'haem/onc', 'paediatric']:

    prob_admission_to_specialty = prediction_snapshots['consultation_sequence'].apply(spec_model.predict).apply(lambda x: x[specialty])
# get probability distribution for this time of day
    prob_dist_dict = get_prob_dist(
            group_snapshots_dict, X_test, y_test, admission_model,
            weights=prob_admission_to_specialty
        )

    title = (
        f'Probability distribution for number of {specialty} beds needed by the '
        f'{len(prediction_snapshots)} patients\n'
        f'in the ED at {format_prediction_time((9,30))} '
        f'on {first_group_snapshot_key} '
    )
    plot_prob_dist(prob_dist_dict[first_group_snapshot_key]['agg_predicted'], title,
        include_titles=True, bar_colour='orange', truncate_at_beds=20)

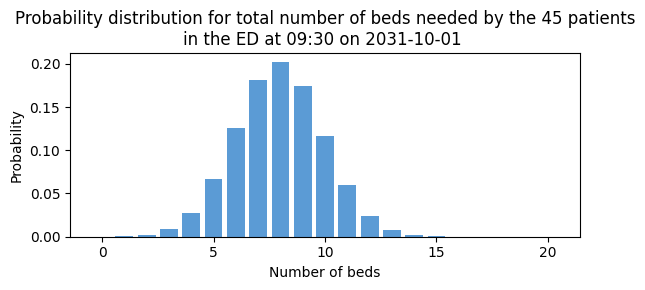

To compare these with the predictions overall (not by specialty) uses the same function without weighting the probability for each specialty.

# get probability distribution for this time of day
prob_dist_dict = get_prob_dist(
        group_snapshots_dict, X_test, y_test, admission_model
        # commenting out the weights argument
        # weights=prob_admission_to_specialty
    )

title = (
    f'Probability distribution for total number of beds needed by the '
    f'{len(prediction_snapshots)} patients\n'
    f'in the ED at {format_prediction_time((9,30))} '
    f'on {first_group_snapshot_key} '
)
plot_prob_dist(prob_dist_dict[first_group_snapshot_key]['agg_predicted'], title,
    include_titles=True, truncate_at_beds=20)

Stratifying by observed characteristics

Disaggregation of predictions using unchanging attributes like sex is very straightforward. Here I show breakdowns by sex.

for sex in ['M', 'F']:

    prediction_snapshots = test_visits[(test_visits.snapshot_date == first_group_snapshot_key) &
                                       (test_visits.sex == sex) &
                                       (test_visits.prediction_time == (9,30))]

    group_snapshots_dict = prepare_group_snapshot_dict(
        prediction_snapshots
    )

    prob_dist_dict = get_prob_dist(
            group_snapshots_dict, X_test, y_test, admission_model
        )

    title = (
        f'Probability distribution for number of beds needed by the '
        f'{len(prediction_snapshots)} {"male" if sex == "M" else "female"} patients\n'
        f'in the ED at {format_prediction_time((9,30))} '
        f'on {first_group_snapshot_key} '
    )
    plot_prob_dist(prob_dist_dict[first_group_snapshot_key]['agg_predicted'], title,
        include_titles=True, truncate_at_beds=20)

Summary

In this notebook I have presented examples of how to disaggregate predicted bed counts according to sub-categories of interest.

Some subgroups are straightforward to generate at inference time, if they are based on attributes of the patient that do not change during a visit, such as sex, gender or ethnicity.

Demand on clinical areas can be predicted dynamically, using a real-time signal collected about a patient that is related to their likely clinical area. In this case I used consult requests issued while patients were in the ED.

In the following notebooks, I demonstrate a fully worked up example of how the functions provided in patientflow are in use at University College London Hospital to predict emergency demand.
