4d. Evaluate predictions with special categories

In the previous notebook I demonstrated how we evaluate the models used at UCLH. As a final step, I now show the same implementation in code, but including extra functionality to handle certain sub-groups differently from others.

At UCLH, it is standard practice to admit paediatric patients (defined as patients under 18 on the day of arrival at the ED) to paediatric wards, and not to admit adult patients (18 or over) to paediatric wards.

The two models that enable prediction by sub-groups (specialty of admission, and yet-to-arrive by specialty) offer parameters that allow you to specify that certain groups are handled differently. In the UCLH example, this means disregarding any consult requests for patients in the ED when predicting which specialty they will be admitted to, and counting all yet-to-arrive patients under 18 as paediatric admissions.

Most of the code below is the same as in the previous notebook. I limit the narrative here to pointing out how the special sub-groups are handled.

Set up the notebook environment

# Reload functions every time
%load_ext autoreload
%autoreload 2

from patientflow.load import set_project_root
project_root = set_project_root()


Inferred project root: /Users/zellaking/Repos/patientflow

Set file paths and load data

I'm going to use real patient data from UCLH to demonstrate the implementation.

As noted previously, you can request the datasets that are used here on Zenodo. Alternatively you can use the synthetic data that has been created from the distributions of real patient data. If you don't have the public data, change the argument in the cell below from data_folder_name='data-public' to data_folder_name='data-synthetic'.

from patientflow.load import set_file_paths

# set file paths
data_folder_name = 'data-public'
data_file_path = project_root / data_folder_name

data_file_path, media_file_path, model_file_path, config_path = set_file_paths(
    project_root,
    data_folder_name=data_folder_name,
    config_file = 'config.yaml', verbose=False)

import pandas as pd
from patientflow.load import load_data

# load ED snapshots data
ed_visits = load_data(data_file_path,
                    file_name='ed_visits.csv',
                    index_column = 'snapshot_id',
                    sort_columns = ["visit_number", "snapshot_date", "prediction_time"],
                    eval_columns = ["prediction_time", "consultation_sequence", "final_sequence"])
ed_visits.snapshot_date = pd.to_datetime(ed_visits.snapshot_date).dt.date

# load data on inpatient arrivals
inpatient_arrivals = inpatient_arrivals = load_data(data_file_path,
                    file_name='inpatient_arrivals.csv')
inpatient_arrivals['arrival_datetime'] = pd.to_datetime(inpatient_arrivals['arrival_datetime'], utc = True)

Set modelling parameters

The parameters are used in training or inference. They are set in config.json in the root of the repository and loaded by load_config_file()

# load params
from patientflow.load import load_config_file
params = load_config_file(config_path)

start_training_set, start_validation_set, start_test_set, end_test_set = params["start_training_set"], params["start_validation_set"], params["start_test_set"], params["end_test_set"]

Apply temporal splits

from patientflow.prepare import create_temporal_splits

train_visits_df, valid_visits_df, test_visits_df = create_temporal_splits(
    ed_visits,
    start_training_set,
    start_validation_set,
    start_test_set,
    end_test_set,
    col_name="snapshot_date",
)

train_inpatient_arrivals_df, _, test_inpatient_arrivals_df = create_temporal_splits(
    inpatient_arrivals,
    start_training_set,
    start_validation_set,
    start_test_set,
    end_test_set,
    col_name="arrival_datetime",
)

Split sizes: [62071, 10415, 29134]
Split sizes: [7716, 1285, 3898]

Train models to predict bed count distributions for patients currently in the ED

This time I'll use a larger parameter grid, while still limiting the search space to a few hyperparameters for expediency.


from patientflow.train.classifiers import train_classifier
from patientflow.load import get_model_key

grid = { # Current parameters
    'n_estimators': [30, 40, 50],  # Number of trees
    'subsample': [0.7, 0.8, 0.9],  # Sample ratio of training instances
    'colsample_bytree': [0.7, 0.8, 0.9],  # Sample ratio of columns for each tree
   }

exclude_from_training_data = [ 'snapshot_date', 'prediction_time','visit_number', 'consultation_sequence', 'specialty', 'final_sequence', ]

ordinal_mappings = {
    "latest_acvpu": ["A", "C", "V", "P", "U"],
    "latest_obs_manchester_triage_acuity": [
        "Blue",
        "Green",
        "Yellow",
        "Orange",
        "Red",
    ],
    "latest_obs_objective_pain_score": [
        "Nil",
        "Mild",
        "Moderate",
        "Severe\\E\\Very Severe",
    ],
    "latest_obs_level_of_consciousness": ["A", "C", "V", "P", "U"],
}

# create a dictionary to store the trained models
admissions_models = {}
model_name = 'admissions'

# Loop through each prediction time
for prediction_time in ed_visits.prediction_time.unique():
    print(f"Training model for {prediction_time}")
    model = train_classifier(
        train_visits=train_visits_df,
        valid_visits=valid_visits_df,
        test_visits=test_visits_df,
        grid=grid,
        exclude_from_training_data=exclude_from_training_data,
        ordinal_mappings=ordinal_mappings,
        prediction_time=prediction_time,
        visit_col="visit_number",
        calibrate_probabilities=True,
        calibration_method="isotonic",
        use_balanced_training=True,
    )
    model_key = get_model_key(model_name, prediction_time)

    admissions_models[model_key] = model

Training model for (22, 0)
Training model for (15, 30)
Training model for (6, 0)
Training model for (12, 0)
Training model for (9, 30)

Train specialty model

Here, when training the model predicting specialty of admission, the apply_special_category_filtering parameter has been set to True, so it will be assumed that all patients under 18 on arrival will be admitted to a paediatric specialty.

from patientflow.predictors.sequence_to_outcome_predictor import SequenceToOutcomePredictor

spec_model = SequenceToOutcomePredictor(
    input_var="consultation_sequence",
    grouping_var="final_sequence",
    outcome_var="specialty",
    apply_special_category_filtering=True,
)

spec_model = spec_model.fit(train_visits_df)

spec_model

SequenceToOutcomePredictor(
    input_var='consultation_sequence',
    grouping_var='final_sequence',
    outcome_var='specialty',
    apply_special_category_filtering=True,
    admit_col='is_admitted'
)
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Under the hood, the SequenceToOutcomePredictor will call a create_special_category_objects() function that returns rules for how to handle each subgroup. The implementation here is primarily designed to handle pediatric patients (under 18) as a special category. A SpecialCategoryParams class generates a dictionary mapping specialties to flags (1.0 for pediatric, 0.0 for others) and functions to identify pediatric patients based on age data. It provides methods to handle both age formats (age_on_arrival or age_group).

The SequenceToOutcomePredictor applies these rules during both training and prediction, ensuring consistent handling of special categories across the entire prediction pipeline

The SpecialCategoryParams class is designed to be picklable, which is necessary for saving the specialty predictor model to disk.

The output from create_special_category_objects is shown below. Note that the output is specific to the UCLH implementation. See below for notes about how to change this for your implementation.

from patientflow.prepare import create_special_category_objects
create_special_category_objects(train_visits_df.columns)

{'special_category_func': <bound method SpecialCategoryParams.special_category_func of <patientflow.prepare.SpecialCategoryParams object at 0x12fcba2c0>>,
 'special_category_dict': {'medical': 0.0,
  'surgical': 0.0,
  'haem/onc': 0.0,
  'paediatric': 1.0},
 'special_func_map': {'paediatric': <bound method SpecialCategoryParams.special_category_func of <patientflow.prepare.SpecialCategoryParams object at 0x12fcba2c0>>,
  'default': <bound method SpecialCategoryParams.opposite_special_category_func of <patientflow.prepare.SpecialCategoryParams object at 0x12fcba2c0>>}}

Train models for yet-to-arrive patients

Predictions for patients who are yet-to-arrive models are based on arrival rates learned from past data. See 3c_Predict_bed_counts_without_using_patient_snapshots.md for more information. When making predictions by specialty, arrival rates are learned for each specialty separately.

The create_yta_filters() function generates a dictionary of filters for the ParametricIncomingAdmissionPredictor to enable separate prediction models for each specialty. It uses the same special category configuration (as defined in create_special_category_objects) to create two types of filters:

  • For pediatric patients: {"is_child": True}
  • For other specialties: {"specialty": specialty_name, "is_child": False}

This allows the predictor to * Train separate models for each specialty * Handle sub-groups differently * Apply appropriate filtering during both training and prediction

from patientflow.predictors.incoming_admission_predictors import ParametricIncomingAdmissionPredictor
from patientflow.prepare import create_yta_filters
from datetime import timedelta

x1, y1, x2, y2 = params["x1"], params["y1"], params["x2"], params["y2"]

specialty_filters = create_yta_filters(ed_visits)
yta_model_by_spec =  ParametricIncomingAdmissionPredictor(filters = specialty_filters, verbose=False)

# calculate the number of days between the start of the training and validation sets; used for working out daily arrival rates
num_days = (start_validation_set - start_training_set).days

if 'arrival_datetime' in train_inpatient_arrivals_df.columns:
    train_inpatient_arrivals_df.set_index('arrival_datetime', inplace=True)

yta_model_by_spec =yta_model_by_spec.fit(train_inpatient_arrivals_df,
              prediction_window=timedelta(hours=params["prediction_window"]),
              yta_time_interval=timedelta(minutes=params["yta_time_interval"]),
              prediction_times=ed_visits.prediction_time.unique(),
              num_days=num_days )

Saving of special category information

The ParametricIncomingAdmissionPredictor class uses the special category objects during initialisation to create static filters that map specialties to their configurations (e.g., {'is_child': True} for pediatric cases), but does not need them in the predict method. The filters are saved with the instance.

yta_model_by_spec.filters

{'medical': {'specialty': 'medical', 'is_child': False},
 'surgical': {'specialty': 'surgical', 'is_child': False},
 'haem/onc': {'specialty': 'haem/onc', 'is_child': False},
 'paediatric': {'is_child': True}}

In contrast, the SequenceToOutcomePredictor save the special parameters as a function, which is used by the predict method to filter and categorise patients based on their characteristics.

spec_model.special_params

{'special_category_func': <bound method SpecialCategoryParams.special_category_func of <patientflow.prepare.SpecialCategoryParams object at 0x12fcba3f0>>,
 'special_category_dict': {'medical': 0.0,
  'surgical': 0.0,
  'haem/onc': 0.0,
  'paediatric': 1.0},
 'special_func_map': {'paediatric': <bound method SpecialCategoryParams.special_category_func of <patientflow.prepare.SpecialCategoryParams object at 0x12fcba3f0>>,
  'default': <bound method SpecialCategoryParams.opposite_special_category_func of <patientflow.prepare.SpecialCategoryParams object at 0x12fcba3f0>>}}

Changes required in your implementation

Listed below are the functions that relate to this special handling.

  1. SpecialCategoryParams Class (src/patientflow/prepare.py):
  2. Specialty names and flags in special_category_dict
  3. Age detection logic in special_category_func

  4. Category mapping in special_func_map

  5. SequenceToOutcomePredictor Class (src/patientflow/predictors/sequence_to_outcome_predictor.py):

  6. Uses create_special_category_objects in _preprocess_data
  7. Filters data based on special categories

  8. Handles specialty predictions differently for special categories

  9. ValueToOutcomePredictor Class (src/patientflow/predictors/value_to_outcome_predictor.py):

  10. Similar to SequenceToOutcomePredictor, uses special category filtering

  11. Applies the same filtering logic in _preprocess_data

  12. create_yta_filters Function (src/patientflow/prepare.py):

  13. Creates specialty filters based on special category parameters

  14. Generates filter configurations for each specialty

  15. get_specialty_probs Function (src/patientflow/predict/emergency_demand.py):

  16. Uses special category functions to determine specialty probabilities

  17. Applies different probability distributions for special categories

  18. create_predictions Function (src/patientflow/predict/emergency_demand.py):

  19. Validates that requested specialties match special category dictionary
  20. Uses special function map for filtering predictions

  21. Applies different prediction logic for special categories

  22. WeightedPoissonPredictor Class (src/patientflow/predictors/weighted_poisson_predictor.py):

  23. Uses specialty filters for predictions

  24. Handles different prediction logic for special categories

  25. Tests (tests/test_create_predictions.py):

  26. Test cases for special category handling
  27. Validation of special category predictions

To modify your implementation for different specialty names and rules, you would need to:

  1. Create a new class that inherits from SpecialCategoryParams with your custom logic
  2. Update all the specialty names and flags in the special category dictionary
  3. Modify the detection functions for your special categories
  4. Update the filter configurations in create_yta_filters
  5. Ensure all test cases are updated to reflect your new specialty structure
  6. Update any documentation or examples that reference the specialty names

Generate predicted distributions for each specialty and prediction time for patients in ED

Now that the models have been trained with the special parameters, we proceed with generating and evaluating predictions. The approach below uses a similar function to the get_specialty_probability_distributions function shown in the previous notebook, with some additional logic to identify sub-groups that need special processing.

The function

  • retrieves the special parameters than were saved with the specialty predictor
  • ensures that only eligible patient snapshots are included in the predictions for each specialty. A temporary version of the test set, called test_df_eligible is created for each iteration through the various specialties using only the eligible visits

Why is this necessary? Imagine an ED that currently has 75 adult patients and 25 children. Tje maximum number of beds that could be needed in the paediatric specialties is 25 and the maximum number of beds that could be needed in the adult specialties is 75. Without filtering a probabilty distribution for 100 beds would be produced. The logic below means that adult patients are excluded from the predicted distribution for the paediatric specialty, and children from the predicted distributions for the adult specialty.

from patientflow.prepare import prepare_patient_snapshots, prepare_group_snapshot_dict
from patientflow.aggregate import get_prob_dist
from patientflow.predict.emergency_demand import get_specialty_probs
from patientflow.load import get_model_key


def get_specialty_probability_distributions_with_special_categories(
    test_visits_df,
    spec_model,
    admissions_models,
    model_name,
    exclude_from_training_data,
    specialties=['medical', 'surgical', 'haem/onc', 'paediatric'],
    baseline_prob_dict=None,
):
    """
    Calculate probability distributions for emergency department patients by specialty and prediction time.

    Args:
        test_visits_df: DataFrame containing test visit data
        spec_model: Model for specialty predictions (SequenceToOutcomePredictor)
        admissions_models: Dictionary of admission prediction models
        model_name: Name of the model to use
        specialties: List of specialties to consider
        exclude_from_training_data: List of columns to exclude from training data
        baseline_prob_dict: Optional dict of baseline probabilities to use instead of spec_model predictions

    Returns:
        Dictionary containing probability distributions for each specialty and prediction time
    """
    # Get specialty prediction parameters
    special_params = spec_model.special_params
    special_category_func = special_params["special_category_func"]
    special_category_dict = special_params["special_category_dict"]
    special_func_map = special_params["special_func_map"]

    # Get predictions of admission to specialty
    if baseline_prob_dict is not None:
        # Use baseline probabilities instead of model predictions
        # Create paediatric dictionary for age group 0-17
        paediatric_dict = {key: 0 for key in baseline_prob_dict.keys()}
        paediatric_dict['paediatric'] = 1

        # Apply different dictionaries based specialty category function
        test_visits_df.loc[:, "specialty_prob"] = test_visits_df.apply(
            lambda row: paediatric_dict if special_category_func(row) else baseline_prob_dict,
            axis=1
        )
    else:
        # Use spec_model to get predictions
        test_visits_df.loc[:, "specialty_prob"] = get_specialty_probs(
            specialties,
            spec_model,
            test_visits_df,
            special_category_func=special_category_func,
            special_category_dict=special_category_dict,
        )

    # Initialize dictionary to store probability distributions
    prob_dist_dict_all = {}

    # Process each time of day
    for _prediction_time in test_visits_df.prediction_time.unique():
        prob_dist_dict_for_pats_in_ED = {}
        print("\nProcessing :" + str(_prediction_time))
        model_key = get_model_key(model_name, _prediction_time)

        for specialty in specialties:
            print(f"Predicting bed counts for {specialty} specialty, for all snapshots in the test set")

            # Get indices of patients who are eligible for this specialty
            func = special_func_map.get(specialty, special_func_map["default"])
            non_zero_indices = test_visits_df[
                test_visits_df.apply(func, axis=1)
            ].index

            test_df_eligible = test_visits_df.copy()
            test_df_eligible = test_df_eligible.loc[non_zero_indices]

            # Get probability of admission to specialty for eligible patients
            prob_admission_to_specialty = test_df_eligible["specialty_prob"].apply(
                lambda x: x[specialty]
            )

            # Prepare patient snapshots
            X_test, y_test = prepare_patient_snapshots(
                df=test_df_eligible,
                prediction_time=_prediction_time,
                single_snapshot_per_visit=False,
                exclude_columns=exclude_from_training_data,
                visit_col='visit_number'
            )

            # Filter probabilities for eligible patients
            filtered_prob_admission_to_specialty = prob_admission_to_specialty.loc[
                non_zero_indices
            ]

            # Prepare group snapshots
            group_snapshots_dict = prepare_group_snapshot_dict(
                test_df_eligible[test_df_eligible.prediction_time == _prediction_time]
            )

            admitted_to_specialty = test_df_eligible['specialty'] == specialty

            # Get probability distribution for this time and specialty
            prob_dist_dict_for_pats_in_ED[specialty] = get_prob_dist(
                group_snapshots_dict, X_test, y_test, admissions_models[model_key],
                weights=filtered_prob_admission_to_specialty,
                category_filter=admitted_to_specialty,
                normal_approx_threshold=30
            )

        prob_dist_dict_all[f'{model_key}'] = prob_dist_dict_for_pats_in_ED

    return prob_dist_dict_all

prob_dist_dict_all = get_specialty_probability_distributions_with_special_categories(
    test_visits_df=test_visits_df,
    spec_model=spec_model,
    admissions_models=admissions_models,
    model_name=model_name,
    exclude_from_training_data=exclude_from_training_data,
)

Processing :(22, 0)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(6, 0)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(15, 30)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(9, 30)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(12, 0)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Visualise the performance of emergency demand prediction models for patients in the ED

Below I generate Adjusted QQ plots for each specialties, using both the baseline predictions, and the sequence predictor. The plots are very similar to the previous notebook. Using age as a fixed category for identifying patients destined for paediatric or adult wards yields similar results.

baseline_probs = train_inpatient_arrivals_df[~(train_inpatient_arrivals_df.is_child) &
                                             (train_inpatient_arrivals_df.specialty.isin(['medical', 'surgical', 'haem/onc']))]['specialty'].value_counts(normalize=True).to_dict()
baseline_probs['paediatric'] = 0

prob_dist_dict_all_baseline = get_specialty_probability_distributions_with_special_categories(
    test_visits_df=test_visits_df,
    spec_model=spec_model,
    admissions_models=admissions_models,
    model_name=model_name,
    exclude_from_training_data=exclude_from_training_data,
    baseline_prob_dict=baseline_probs
)

Processing :(22, 0)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(6, 0)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(15, 30)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(9, 30)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

Processing :(12, 0)
Predicting bed counts for medical specialty, for all snapshots in the test set
Predicting bed counts for surgical specialty, for all snapshots in the test set
Predicting bed counts for haem/onc specialty, for all snapshots in the test set
Predicting bed counts for paediatric specialty, for all snapshots in the test set

from patientflow.viz.epudd import plot_epudd

for specialty in ['medical', 'surgical', 'haem/onc', 'paediatric']:

    print(f'\nEPUDD plots for {specialty} specialty: baseline vs sequence predictor')

    specialty_prob_dist_baseline = {time: dist_dict[specialty] for time, dist_dict in prob_dist_dict_all_baseline.items()}
    specialty_prob_dist = {time: dist_dict[specialty] for time, dist_dict in prob_dist_dict_all.items()}

    plot_epudd(ed_visits.prediction_time.unique(),
        specialty_prob_dist_baseline,
        model_name="admissions",
        suptitle=f"EPUDD plots for {specialty} specialty using baseline probability")

    plot_epudd(ed_visits.prediction_time.unique(),
        specialty_prob_dist,
        model_name="admissions",
        suptitle=f"EPUDD plots for {specialty} specialty using sequence predictor")

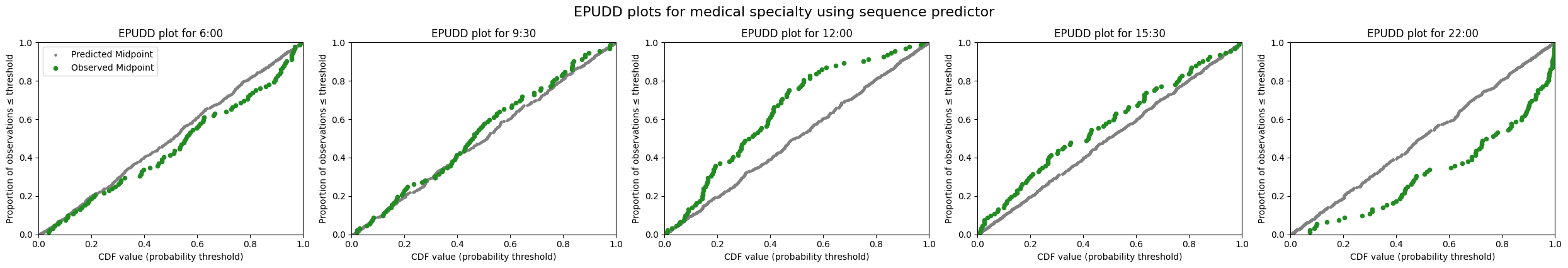

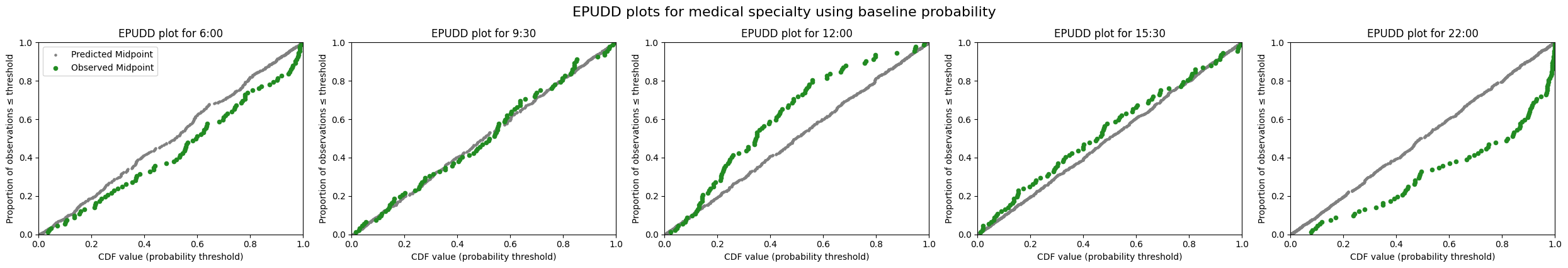

EPUDD plots for medical specialty: baseline vs sequence predictor

png

png

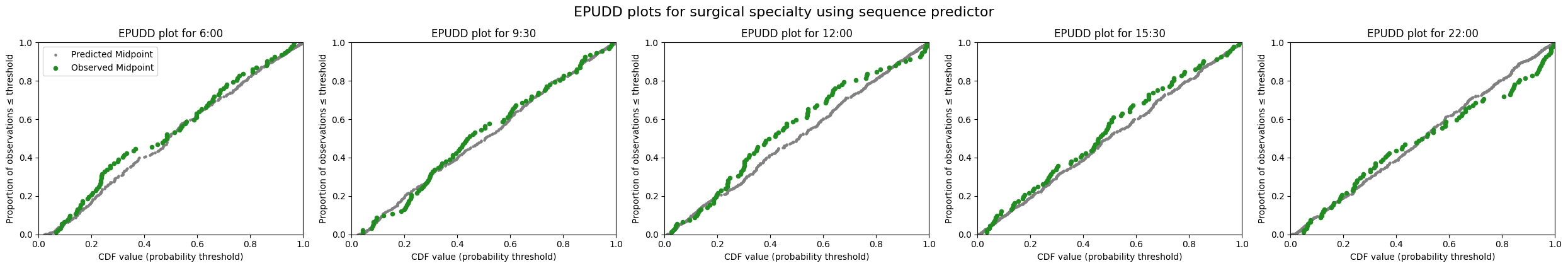

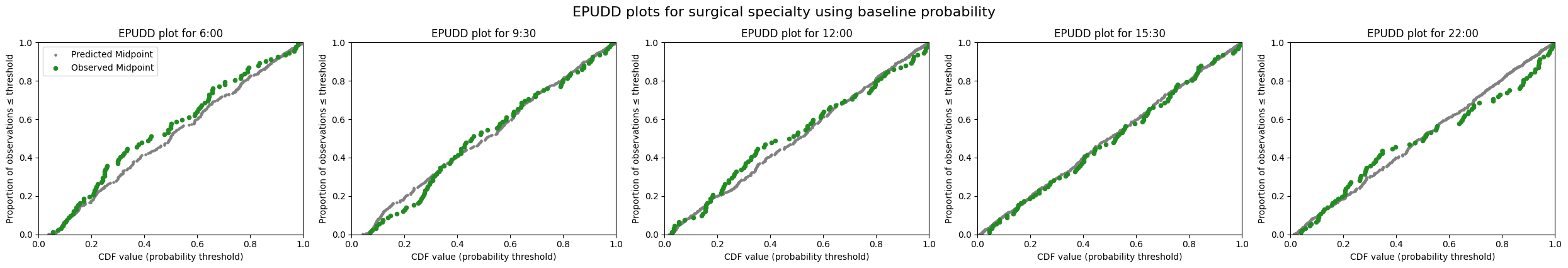

EPUDD plots for surgical specialty: baseline vs sequence predictor

png

png

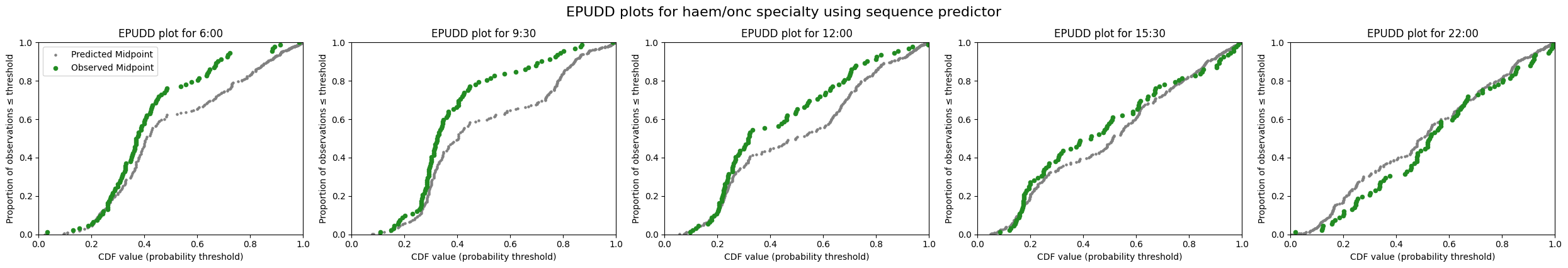

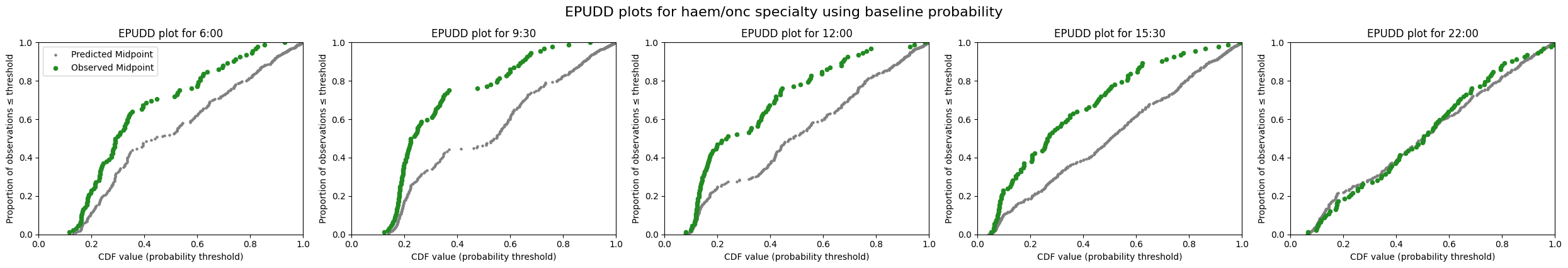

EPUDD plots for haem/onc specialty: baseline vs sequence predictor

png

png

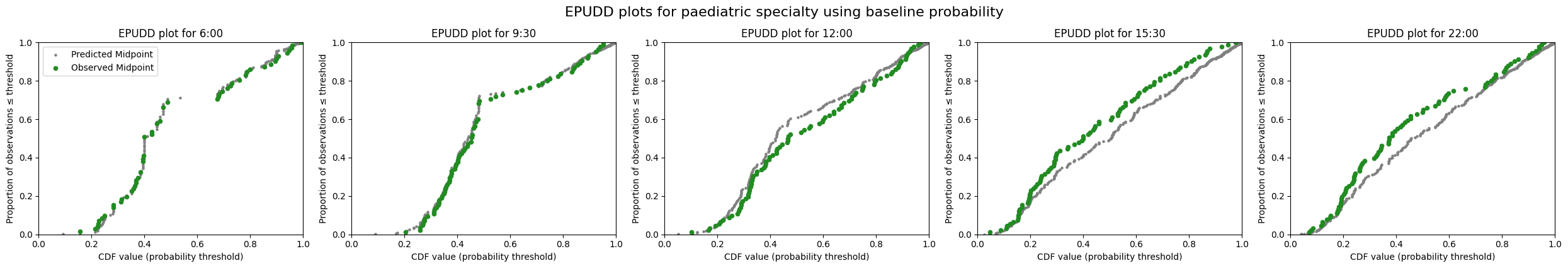

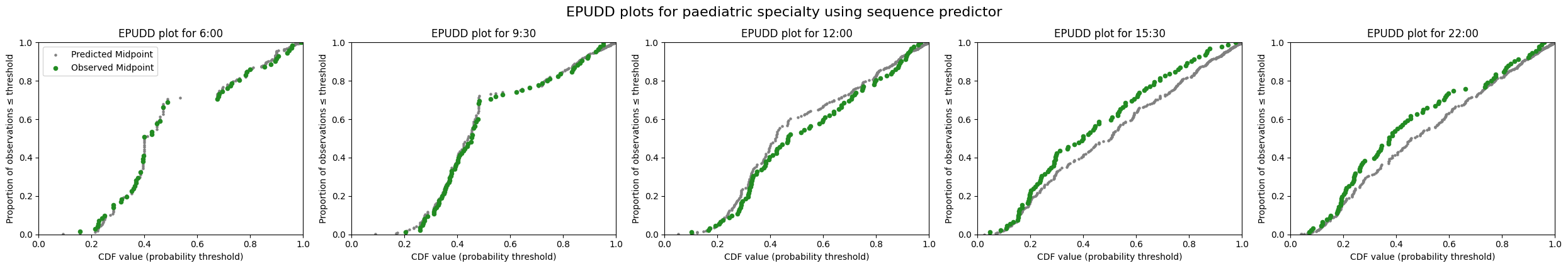

EPUDD plots for paediatric specialty: baseline vs sequence predictor

png

png

Summary

In this notebook I have shown how to specify that certain groups are handled differently. In the UCLH case, we assume that all patients under 18 will be admitted to a paediatric specialty. I have demonstrated how you can use the functions in patientflow to handle such special cases.
